CobiNet Point of Presence (PoP)

Maximum fibre density on minimum space

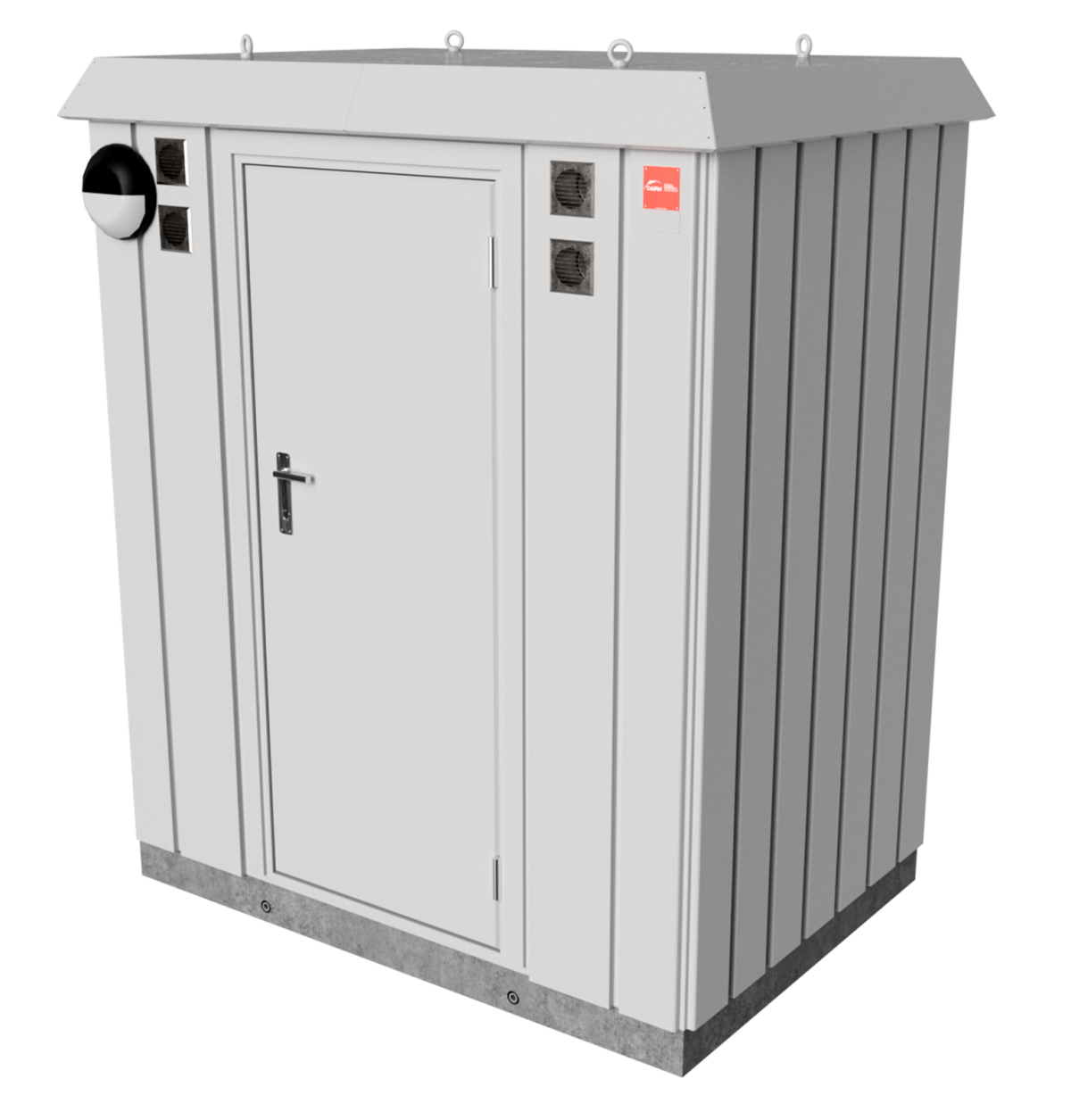

The CobiNet Point of Presence (PoP) is the central element of the public broadband infrastructure

The point of presence combines data, voice and video connections between the carrier’s backbone and the regional FttH fibre network, which connects each building to the network. After the point of presence, further distribution levels are usually implemented within the FttH network, which are realised in form of fibre optic network distributors or sleeves. These distribution levels have the function to collect the optical fibres coming from the customer connection and to forward them bundled to the PoP in order to ensure an efficient and highly capacitive connection.

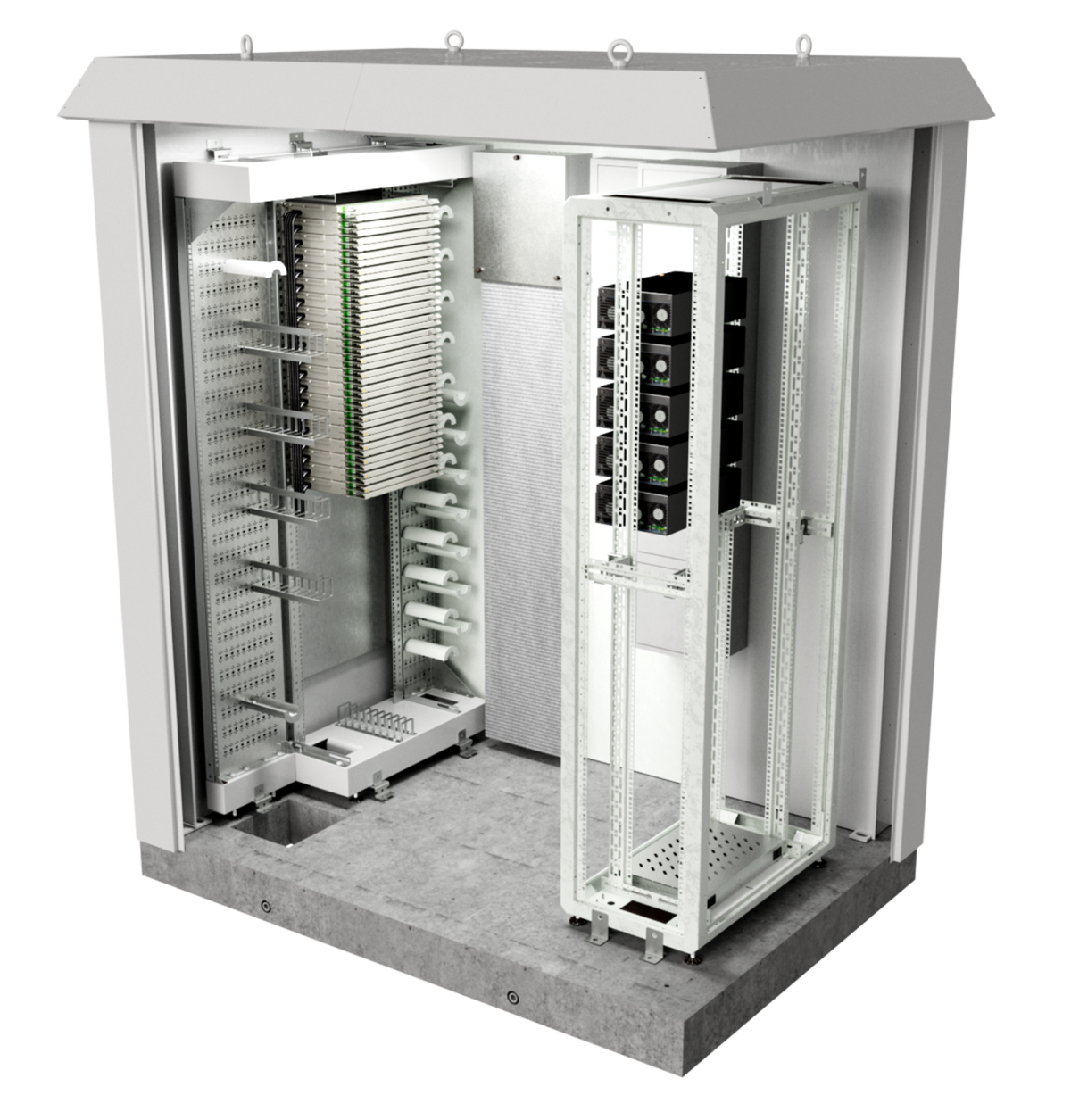

Installation components for the point of presence:


ODF Distribution rack


ODF Distribution rack


Swing splice enclosure
The benefits of the CobiNet PoP at a glance
  • Space for up to 6912 fibres on only 2.78 sqm
  • Normally no building permit required in most regions thanks to its minimal surface area
  • Easy installation without a separate truck crane thanks to the low weight of about 2.2 tons
  • Simplified logistics when installing several PoP’s at the same time: space for up to 6 buildings on one low loader truck
  • High safety and robustness thanks to weight-saving construction with high-strength walls in sandwich design and base plate made of fibreglass-concrete mixture
  • Highest flexibility thanks to customised dimensions and free choice of RAL colours
  • Seamless integration into the environment thanks to a wide range of options for the exterior wall design
  • Reduction of CO2 footprint and sealed area through optional green roof
  • Optional installation and ready-to-use delivery including all fittings with the help of CobiNet’s own factory assembly service
  • Further versions with individual dimensions and interior fittings are optionally available
We would be happy to assist you with the individual equipment of your Point of Presence and look forward to being contacted at:


The CobiNet assembly service for your point of presence

With the CobiNet assembly service, we offer the opportunity to deliver ready-to-use, pre-assembled and tested connectivity solutions just-in-time to the construction site.

Installation time and costs will be reduced, the assembly under industrial conditions increases the reliability and improves the operational safety. Specialised staff can be optimally deployed and additional packaging waste is saved through pre-assembled solutions.

We are happy to support you with technical know-how and practical expertise in the conception, project planning and implementation of your fibre optic expansion.
