Rollerbox incl. WO19

Rollerbox incl. WO25 (available soon)

FttH installation set

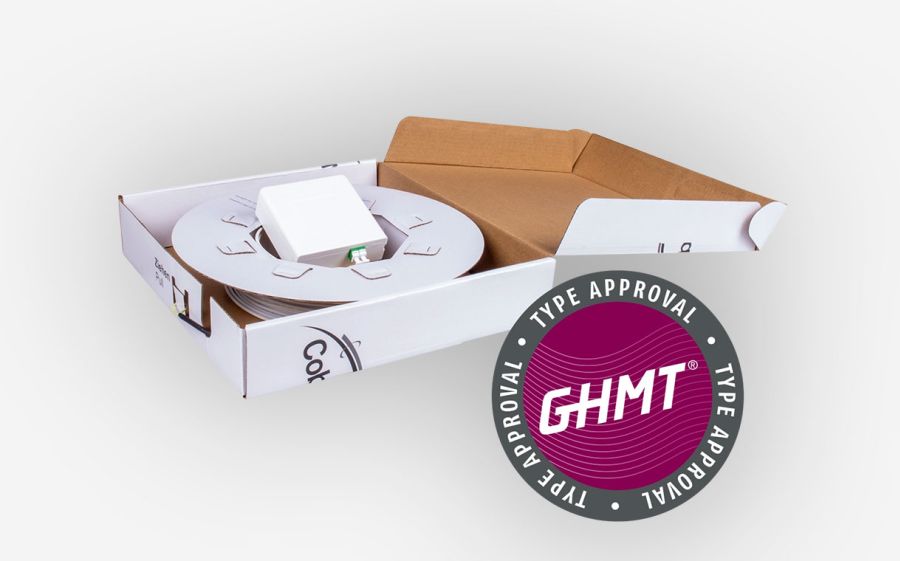

Rollerbox

The CobiNet FttH installation set with pre-terminated socket. Simply unroll, insert, fix – done!

The Rollerbox FttH installation set includes a factory-pre-terminated socket and a pre-assembled cable for installing of FttH network connections. This avoids time-consuming installation work in the home, as the connection box is already terminated ready for use.

The FttH installation set can be easily installed by one person thanks to the integrated fixation inside the box for easy unrolling of the cable.

Variants with lengths of 30, 50 and 70 metres are available.
Please contact us for customised lengths and configurations!

For easy connection of the data cable at the building transfer point, we recommend the use of a field-terminable fibre optic connector (see below)

Apartment

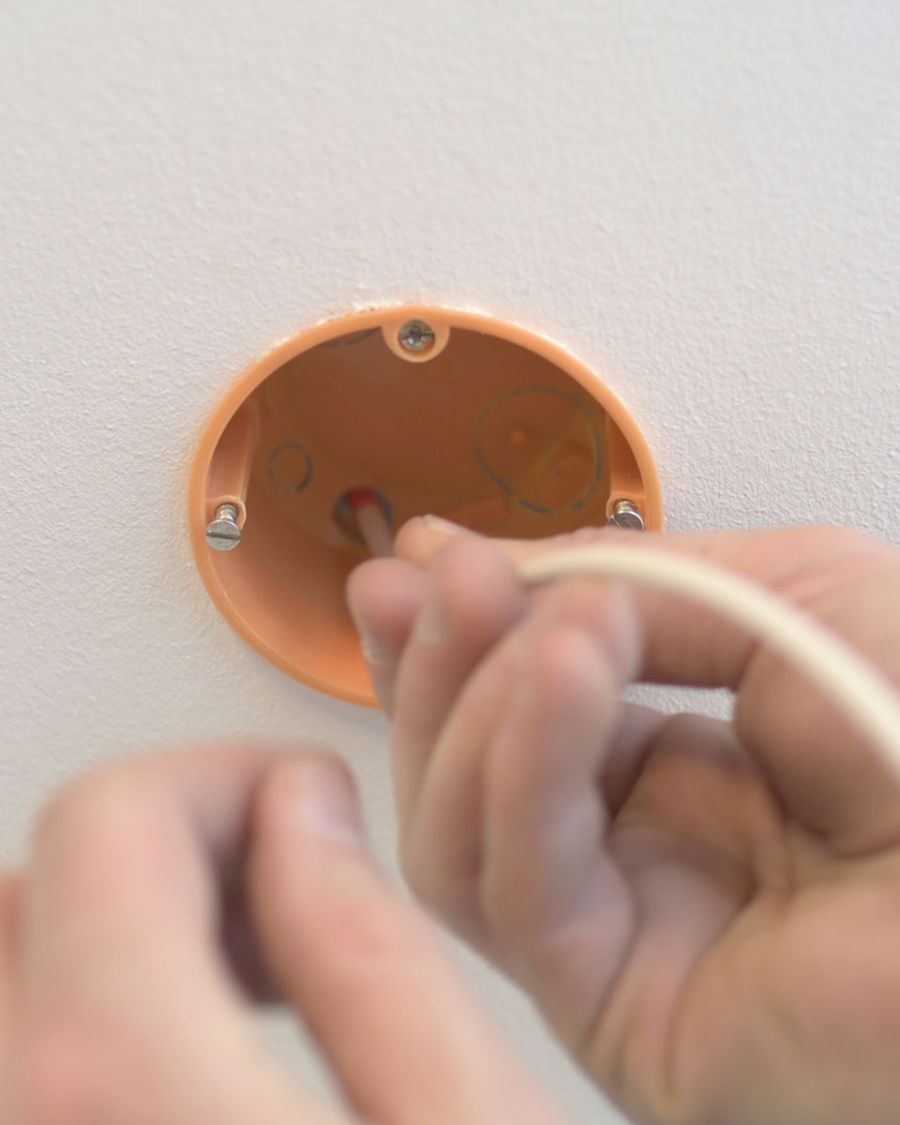

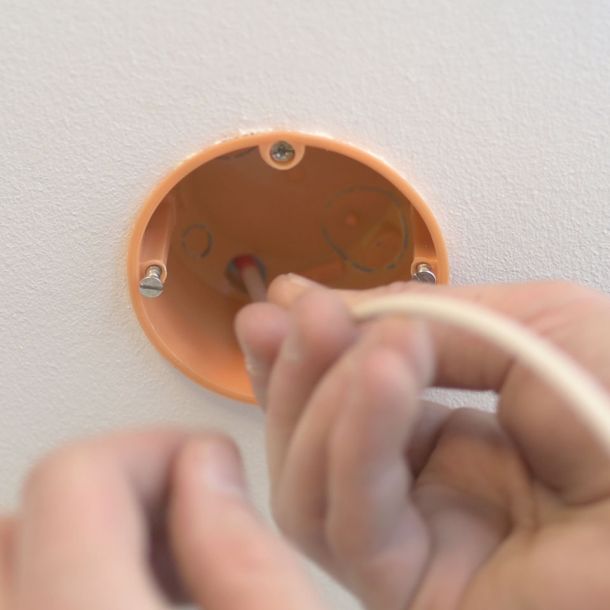

Insert cable

The fibre optic cable is either inserted directly into the empty conduit or attached to a pulling aid using the integrated pull-through eyelet and pulled to its destination.

Apartment

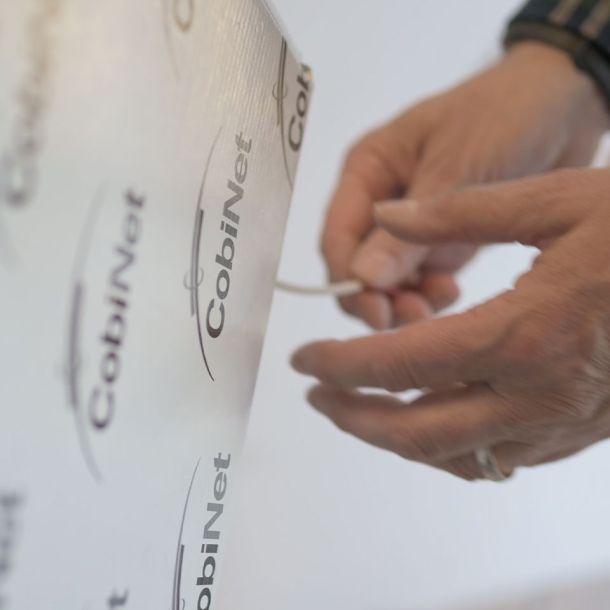

Unroll

The reel integrated into the Rollerbox allows the cable to be easily unroll during installation. For one-person installation, the packaging has a bracket that can be used to attach it to a ladder or chair, for example. This allows a single person to lay the cable with ease.

Apartment

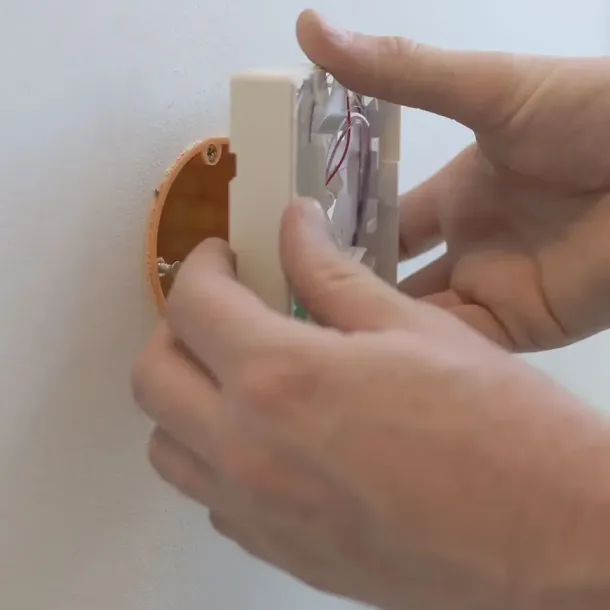

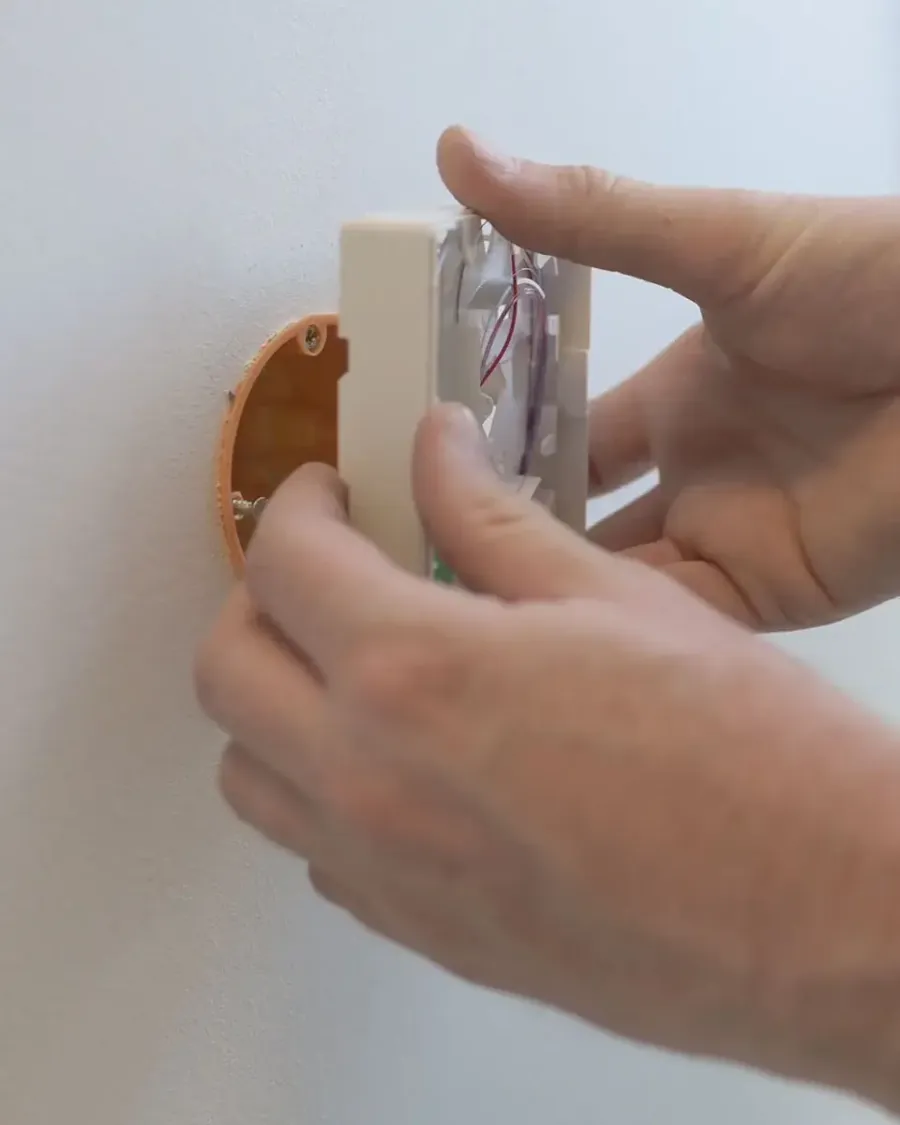

Install surface-mounted or flush-mounted box

After laying the cable, the fibre optic connection box – either surface-mounted or flush-mounted, depending on the installation situation – is installed using the standard screw connections. When using the flush-mounted version, both the central cover from CobiNet and UAE central covers with a 45° angled outlet can be used to cover the fibre optic adapter. These are available for almost all common switch ranges from the range manufacturer.

Basement

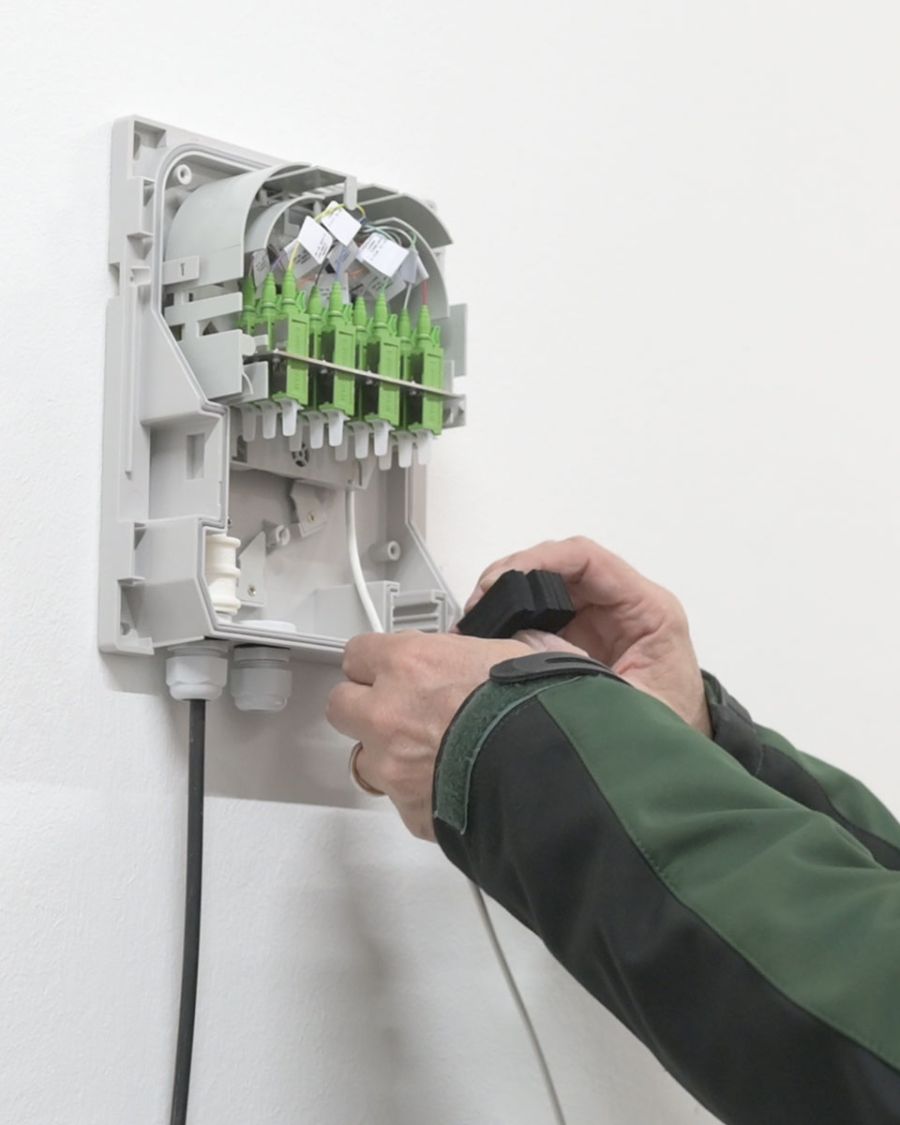

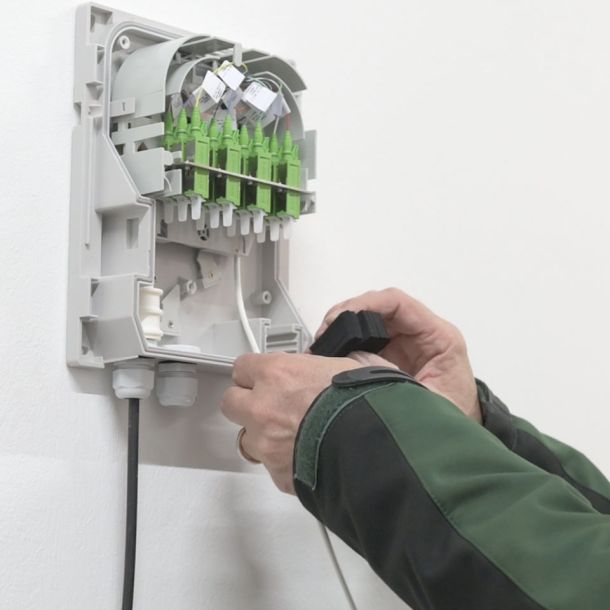

Shorten the cable and connect it

Cut the cable in the basement to the required length and fit a field-terminable fibre optic connector. Then plug the connector into the transfer housing.

Mehr Info

Apartment

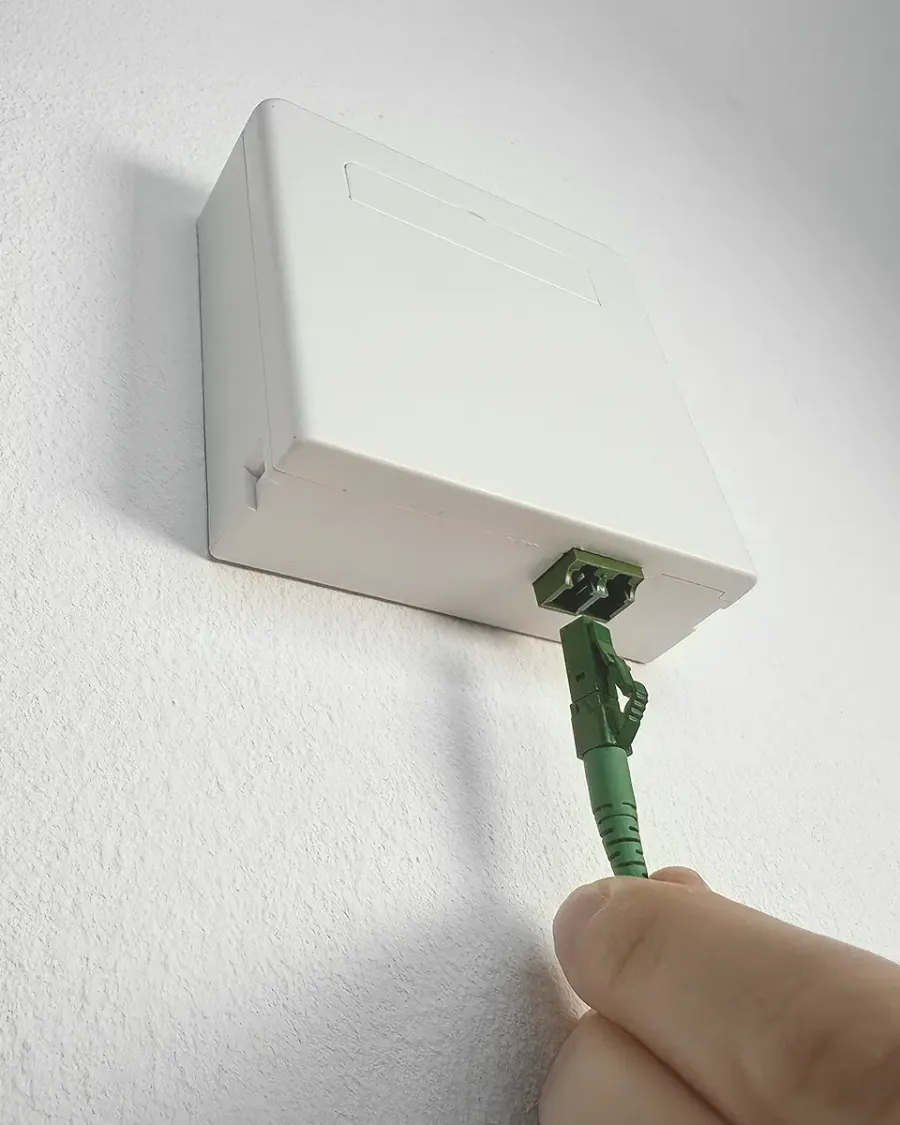

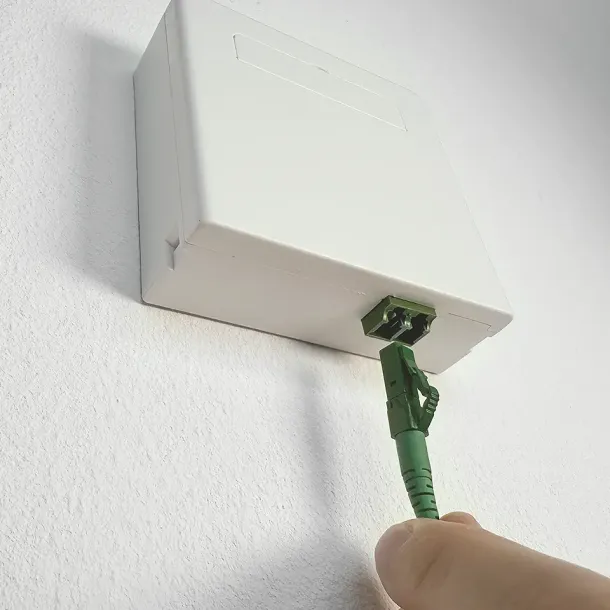

Connect and start surfing

Connect fibre optic patch cables from the connection point to a fibre optic FRITZ!Box, for example, and enjoy high-speed internet at the speed of light!

FttH-Installation
made easy!

Quick and easy – five steps to a fibre optic connection

The fibre optic cable connected to the junction box can be easily pulled through existing empty conduits or cable ducts to the house transfer point by just one person – no second specialist is required. A bracket for securing the cable reel during unwinding is integrated into the roller box.

At the transfer point, the fibre optic cable is cut to size and connected with a field-terminable connector. This well-designed solution avoids the need for cumbersome storage of excess cable length, which is often necessary with connection sets with pre-assembled ferrules or connectors.

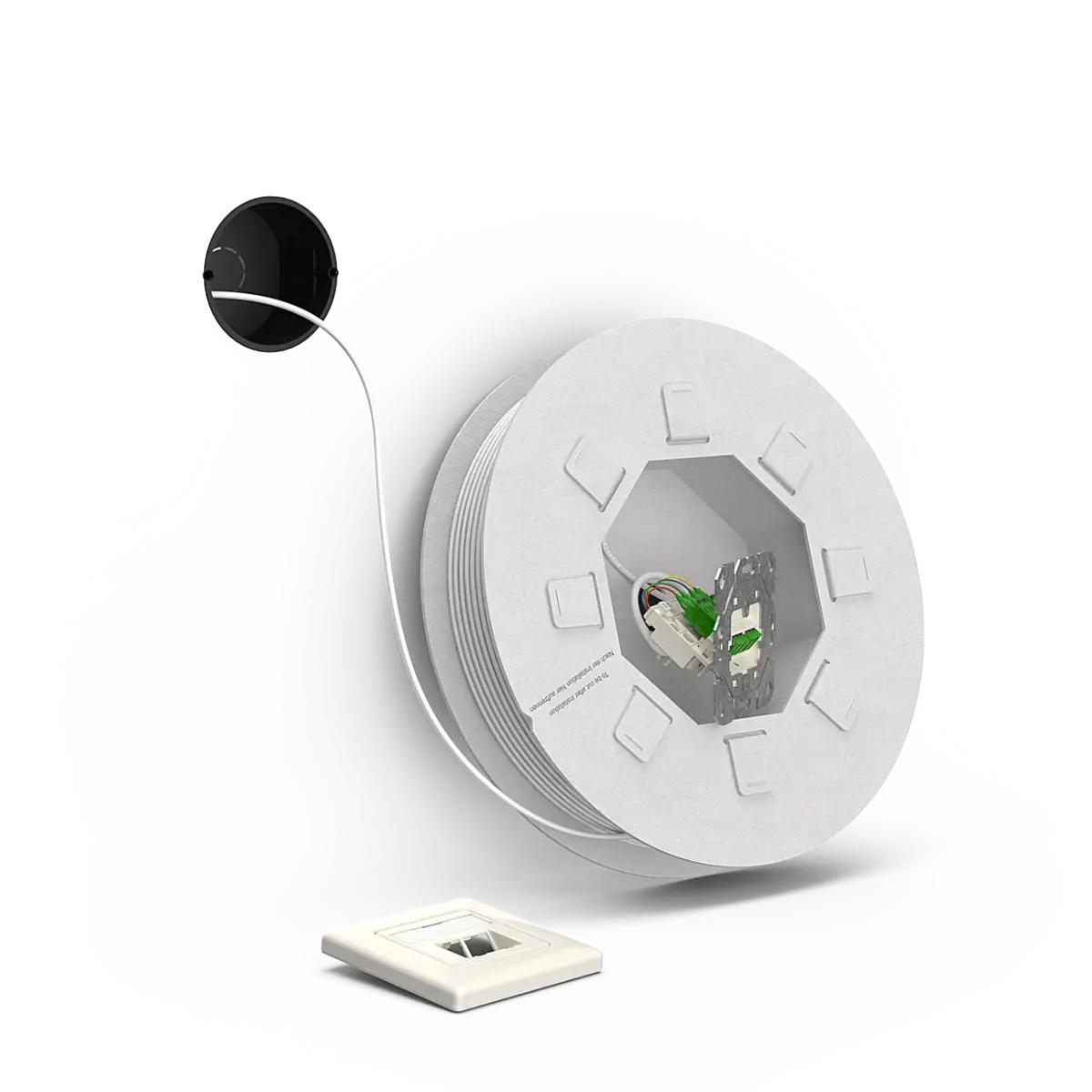

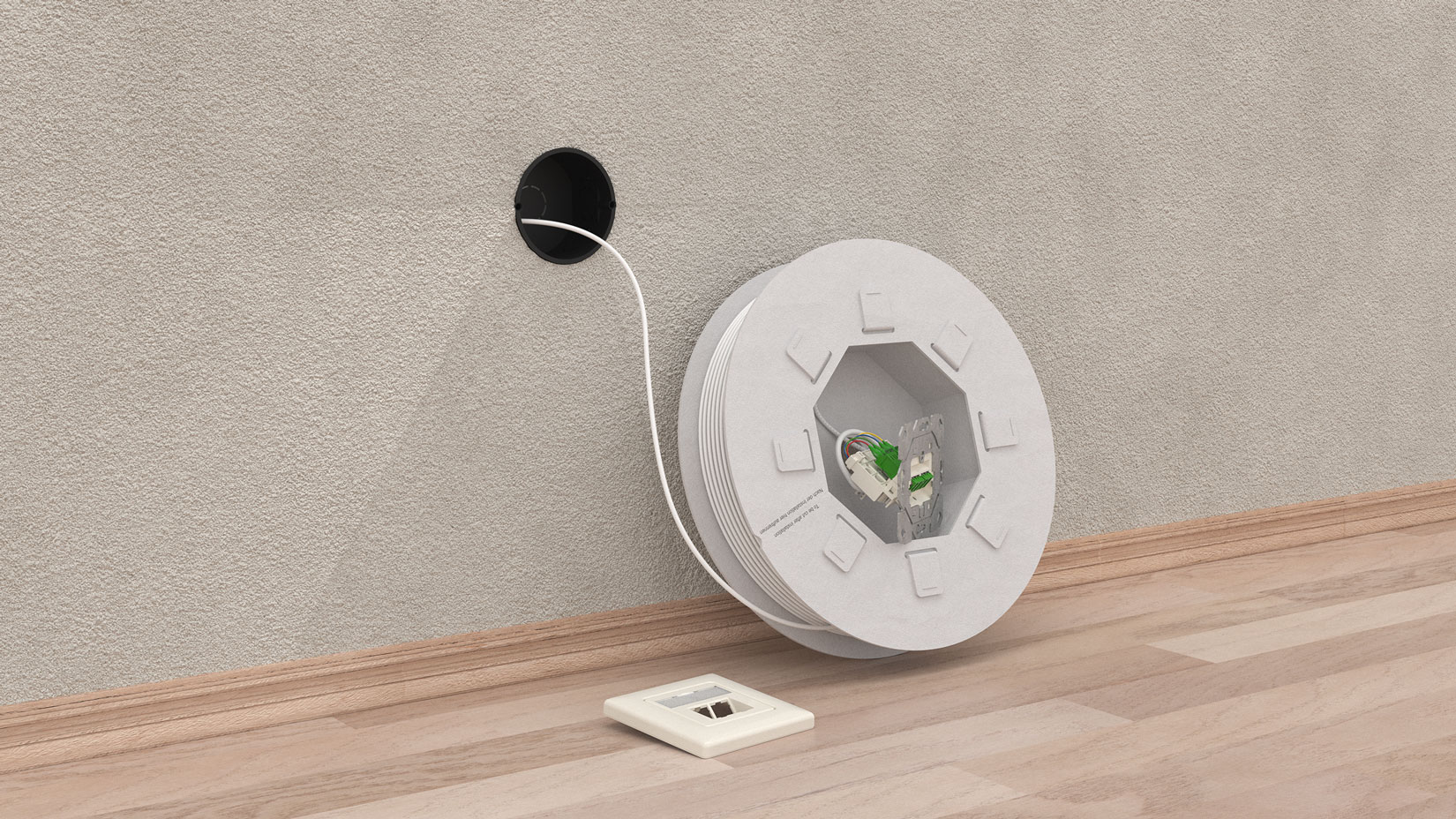

The CobiNet Rollerbox

Available as surface-mounted and flush-mounted versions with connection box ready for operation

Various lengths and designs available

Junction box surface-mounted

Junction box flush-mounting

Connection box DIN rail

Your advantages
at a glance

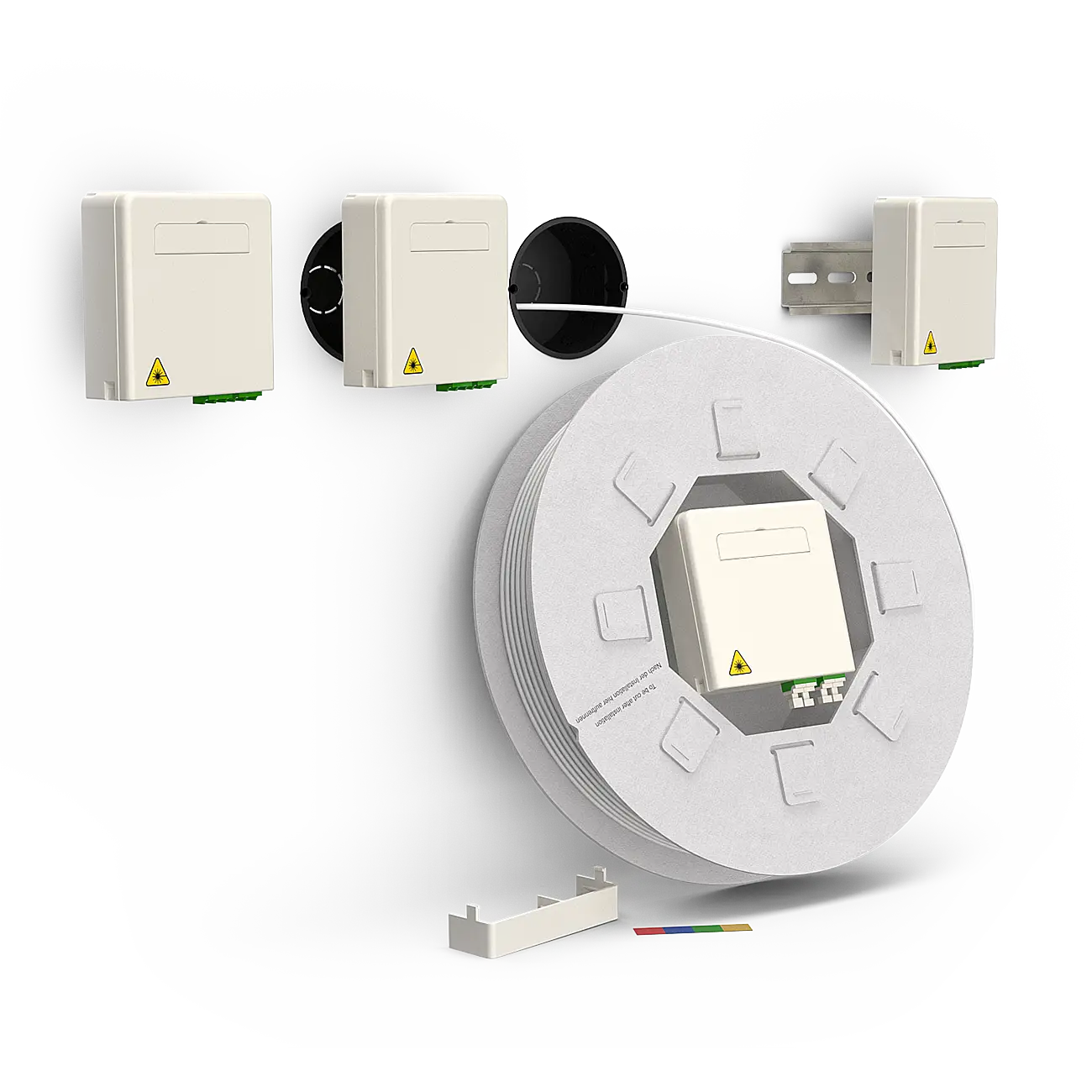

Rollerbox surface-mounted:

One junction box, three mounting options:
1. Surface mounting
2. Switch box
3. Top-hat rail
Time and cost savings thanks to ready-to-use connection box, which eliminates the need for time-consuming splicing work at the end customer’s premises
Easy single-person assembly thanks to integrated cable holder on the packagin
High operational reliability thanks to self-sealing fibre optic couplings

Additional advantages of the flush-mounted version:

Seamless integration into switch ranges through the use of proven UAE connection plates with 45° angled outlet
No costly electronic box inserts required – the compact design allows installation even in shallow switch boxes

Do you require a Rollerbox in your desired configuration or design and cannot find a suitable standard solution in our range?

Contact us – together we will find the perfect solution for your requirements.

Contact

Order CobiNet FttH-Solutions online

CobiNet FttH-Solutions

Rollerbox
Installation set

For quick and easy FttH network installation, the Rollerbox FttH connection set includes a fibre optic connection box that is factory-fitted and ready for use, as well as a pre-assembled cable. This eliminates time-consuming and costly splicing work at the end customer’s premises. The pre-assembled cable can be easily pulled through existing empty conduits or cable ducts to the house transfer point by just one person.

Order online

CobiNet FttH-Solutions

Fibre optic wall outlet WO19

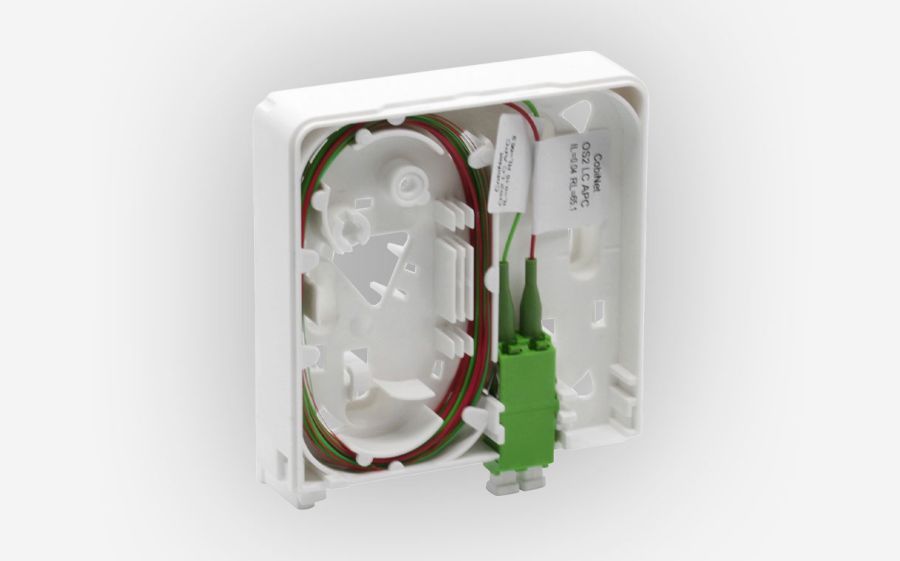

The CobiNet fibre optic connection box serves as the end termination of the FttH network at the end user’s premises, to which the operator’s active equipment (e.g. router) is connected via fibre optic patch cables. The box can be mounted either on the surface or on a top-hat rail (DIN TS35). The integrated splice cassette and excess length management ensure that the bending radii of the pigtails and the fibre optic connection cable are optimally maintained.

Order online

CobiNet FttH-Solutions

Fibre optic wall outlet WO25

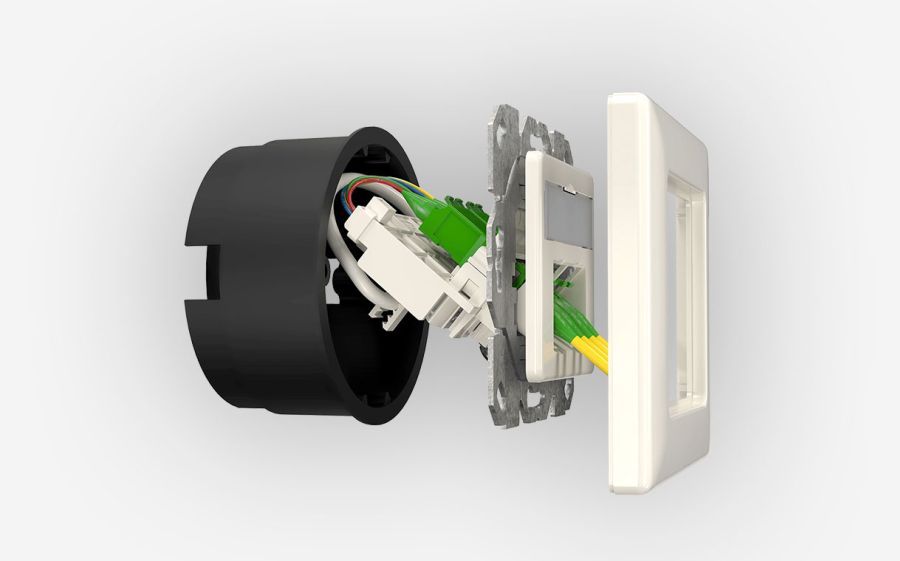

The compact flush-mounted fibre optic connection box with integrated splice cassette offers a solution for FttH connections that is compatible with all standard switch ranges. Thanks to its low installation depth, the connection box can also be installed in flat switch boxes. This also eliminates the need for costly and labour-intensive flush-mounted electronic box inserts.

In Kürze verfügbar

CobiNet FttH-Solutions

Field-terminatable fibre optic connector

The field-terminatable fibre optic connector provides a simple and cost-effective method of connecting connection systems such as the CobiNet Rollerbox at the building entry point. There is no need for time-consuming and costly fibre splicing, and personnel requirements are reduced. The connectors are available in various designs.

Order online
