CobiNet RS18
network cabinets

Space-saving and calculation-safe

The formula
for more space

The CobiNet network and server cabinet RS18 is an innovative, modular cabinet system that offers functionalities that offer maximum flexibility with maximum cost control both when used as a single network cabinet and in the data centre.

In the RS18, 19″ components can not only be installed from the front/rear and side as usual, but also at the top of the roof and bottom of the floor. As a result, up to 46 height units more installation space is available in the RS18, which can be occupied by standard 19″ components. To ensure that the RS18 always remains stable, it is designed for a load capacity of 1500 kg.

Benefit from the maximum possible packing density with significantly reduced space requirements.
The rear wall of the RS18 is planned and built as a two-part door, so that the network cabinet can be placed close to the wall in a particularly space-saving manner.

With our offer “One door – one price” you can react flexibly to changes.
Are you not yet aware of the exact parameters for installation at the beginning of the project? Is there less space available for the network cabinet due to plan changes? Or do you still have a lot of change requests for you at short notice before the installation date, because the requirements on the construction site have changed due to the short project run phases?

The benefits
of RS18

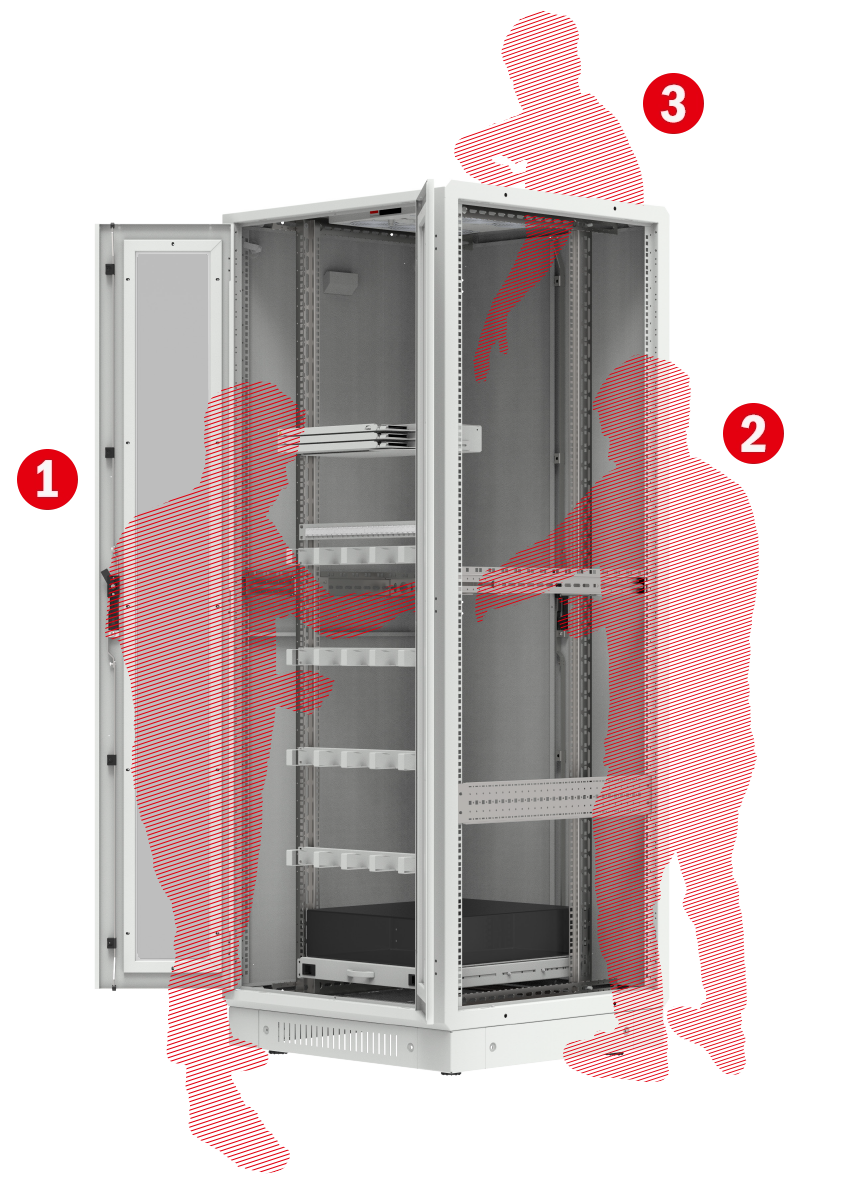

  • Installation of the components from the front, rear, side and additionally from the top and bottom
  • Up to 28 height units more 19″ space due to third rack dimension
  • 100% calculation reliability: 6 door variants, one price
  • Quickly mounted by handy two-piece side walls and rack doors
  • Easy alignment of the rack with only one person through adjustable feet from the inside
  • To fit as much as possible: High load capacity of 1500 kg
  • Saving time, resources and costs on the construction site through pre-assembled delivery
  • Fits almost anywhere due to a high variety of variants: heights from 22 to 52 HU, depths from 800 to 1200 mm, widths from 600 to 800 mm, can be ranked

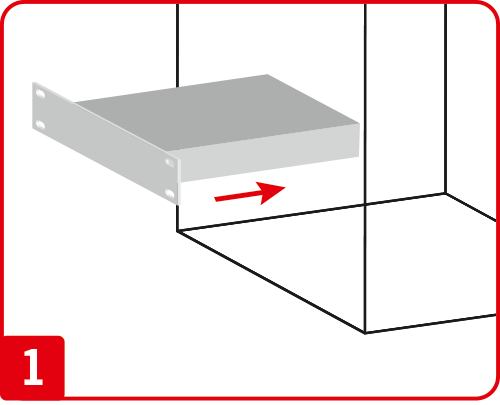

Installation from front and rear

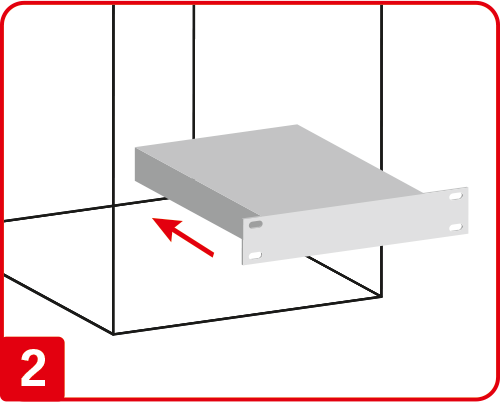

Installation side – left and right

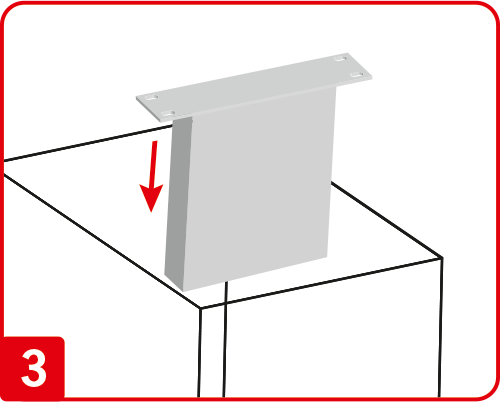

Installation from roof and floor

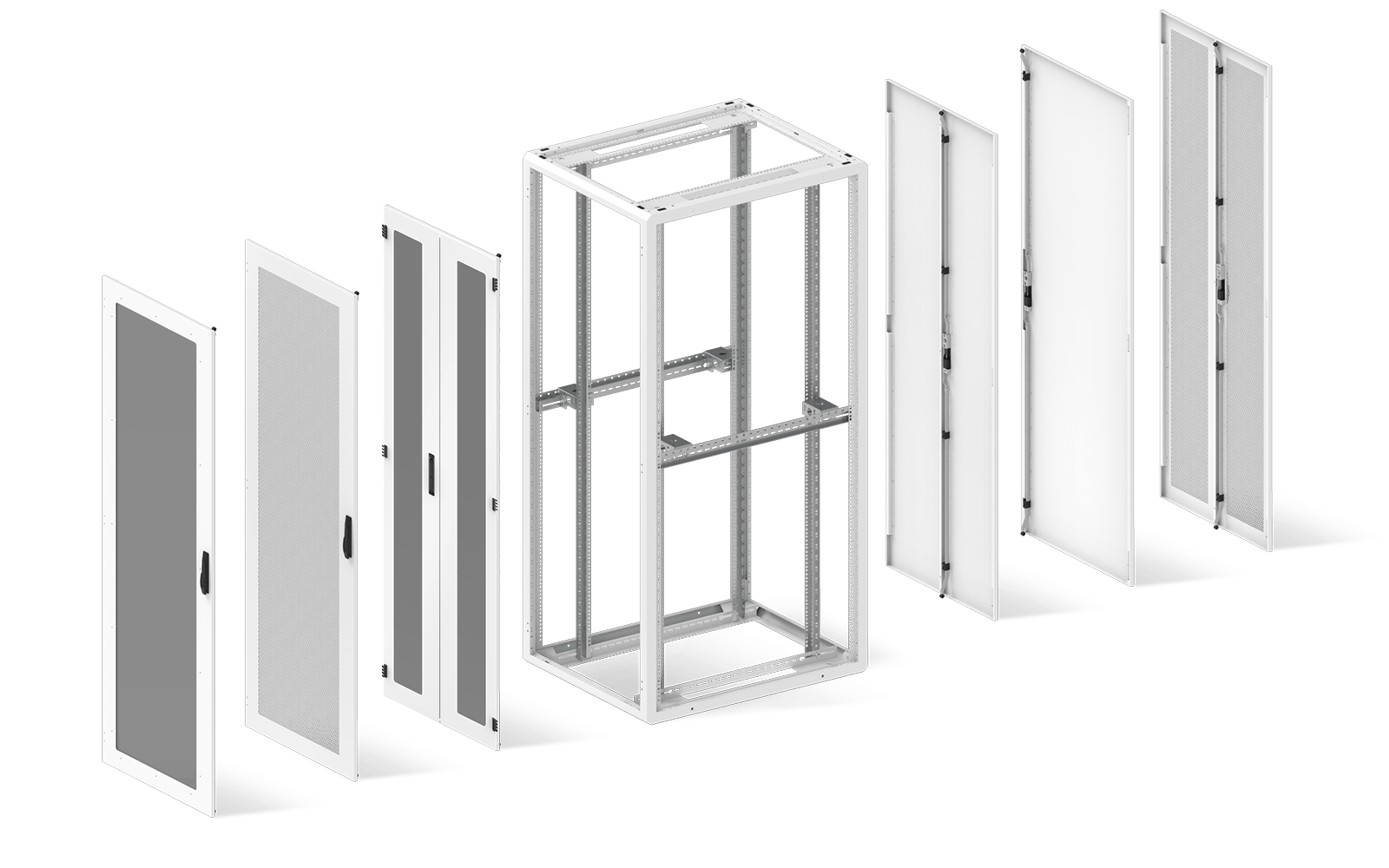

Whether transparent or closed, perforated, one-piece or two-piece – with the RS18 we offer doors for every application and for every environment. The price remains the same, regardless of which door variant you ultimately choose. Quite simply: “one door – one price”
The CobiNet
assembly service
for your project
Accelerated project runtimes
RS18 - The CobiNet
Racksystem with the
3rd 19"-Dimension
Installation of the components
