Network Cabinets RS18

Your Benefits –
from Costing to
Implementation

Innovative and modular

The CobiNet RS18 network cabinet system offers a wide range of features that provide maximum flexibility and cost control, whether used as a single cabinet or in a data center environment.

The optional pre-assembly service by CobiNet gives you the opportunity to accelerate your project timelines, reduce costs, and simplify on-site logistics. In addition, you benefit from optimized waste management with significantly less packaging material on the construction site.

RS18 Scaling

Always the perfect model
for your needs

One platform – three flexible equipment variants

The RS18 server and network cabinets are available in versions to suit every requirement. Choose between the cost-effective entry-level model, the fully equipped standard version with base and three-piece floor panel, or the Plug & Play Version, delivered from the factory with all components for cabling, electrification, and cable management, precisely according to your specifications.

RS18 Server- and Network cabinets

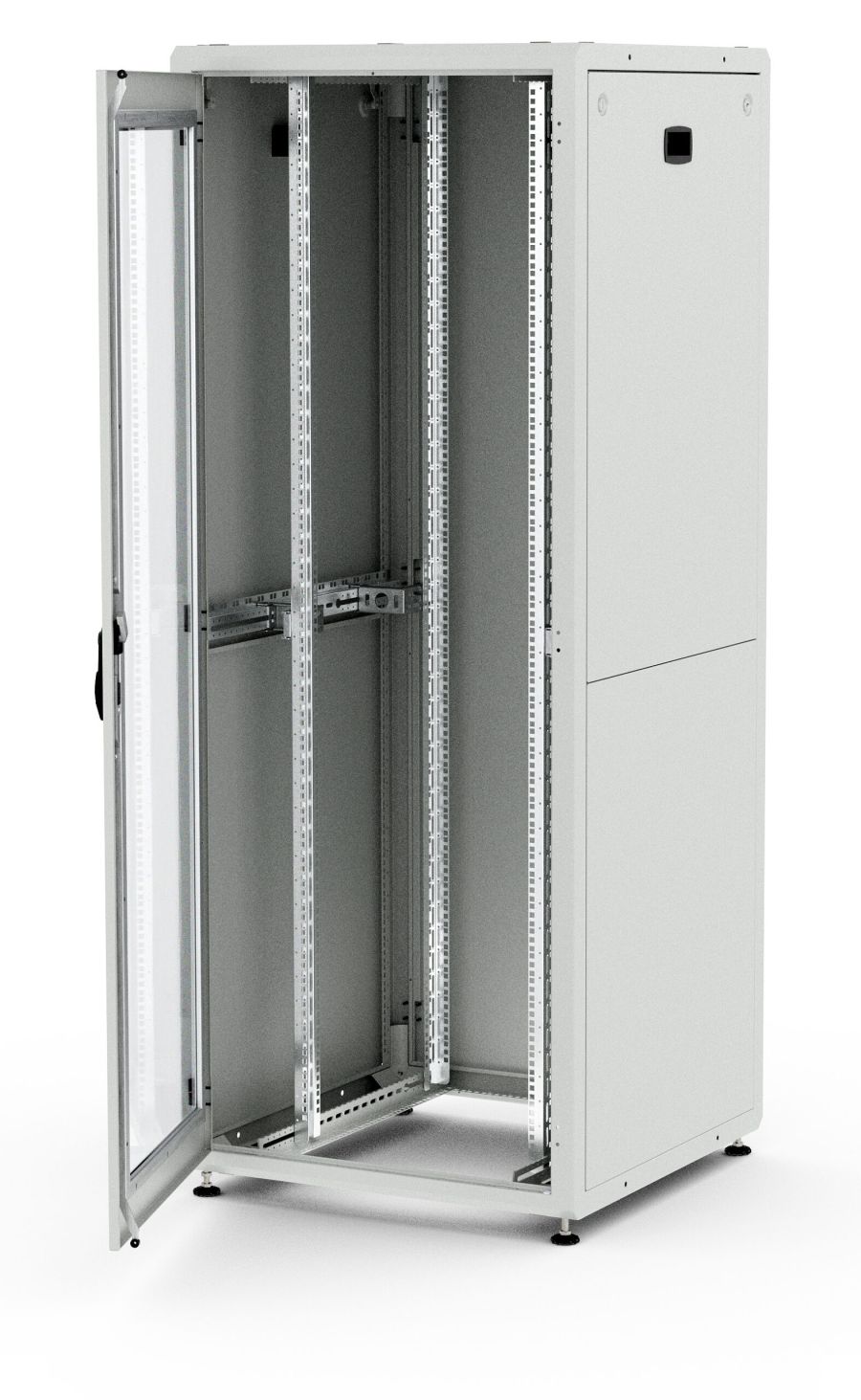

Entry
Version

For the cost-conscious, sharply calculated
Flexible choice included – six door variants for front and rear, all at the same price

RS18 Server- and Network cabinets

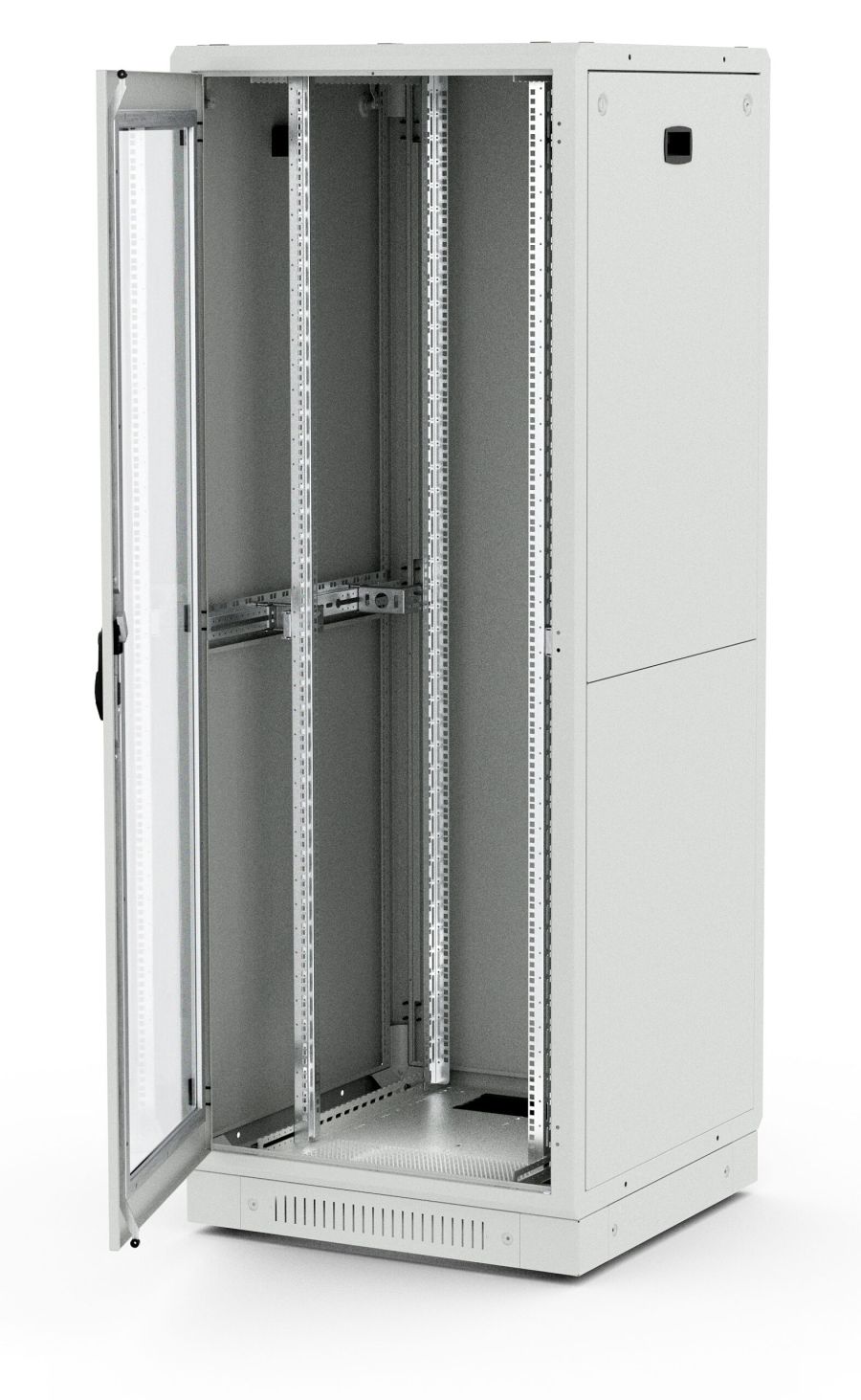

Fully equipped
Version

Flexible choice included – six door variants for front and rear, all at the same price
More space for cable reserves and optimized airflow thanks to the integrated 10 cm base
Flexible adaptation to the installation environment through a modular, three-piece floor panel

RS18 Server- and Network cabinets

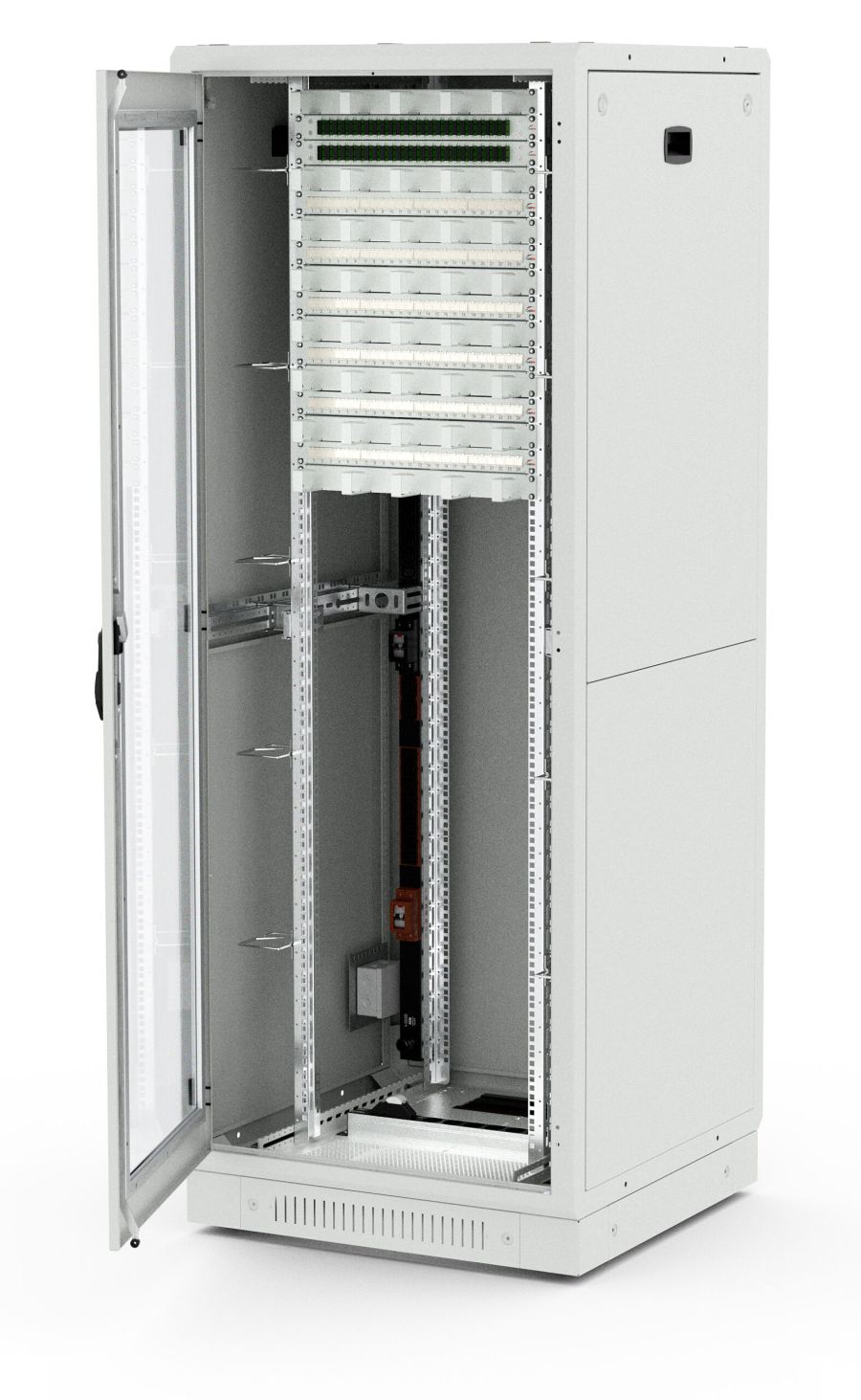

Plug & Play
Version

Save time, resources, and costs during installation with factory preassembled components tailored to your exact specifications
Flexible choice included – six door variants for front and rear, all at the same price
More space for cable reserves and optimized airflow thanks to the integrated 10 cm base
Flexible adaptation to the installation environment through a modular, three-piece floor panel

RS18 Load capacity

Developed
for highest Loadabilty

Rely on the stability and reliability of the RS18 platform

Modern network and server cabinets not only have to accommodate an ever-increasing amount of cabling, but also meet the demands of today’s servers, which continue to grow heavier despite their more compact designs.

With a load capacity of 1.5 tons, RS18 network Racks provide ample strength to safely accomodate passive and active network components. Additional capacity is also available for future extensions or modifications with further installations.

RS18 Calculation Reliability

Freedom of choice without hussle

6 door variants at a uniform price

To make your decisions as easy as possible, we offer you the flexibility to choose both front and rear doors from six different designs – all at the same price.

With our “six door variants – one price” option, you can fix your procurement costs while remaining flexible if project requirements change. whether due to new spatial conditions or additional ventilation needs, you can switch door types at any time without incurring extra costs, and without having to adjust your budget.

RS18 Simplicity

Extra Installation space through (19″)³

Additional installation space for maximum flexibility

The RS18 offers up to 46 additional height units with its innovative (19”)³ design, which can be equipped with standard 19” components.

This provides significantly greater capacity and flexibility when installing your IT equipment.

Thanks to the (19”)³ concept, a true three-dimensional installation design becomes possible — allowing components to be mounted not only at the front, rear, and sides, but also in the roof and floor areas of the cabinet. This lets you make optimal use of the entire interior space.

Roof

Easy, dust-protected cable entry through generous openings along almost the entire cabinet depth
Flexible integration of additional 19” components by using the extra 19” level, for example for power distribution units or cable management
Simple retrofitting of fan units thanks to the preconfigured roof panel

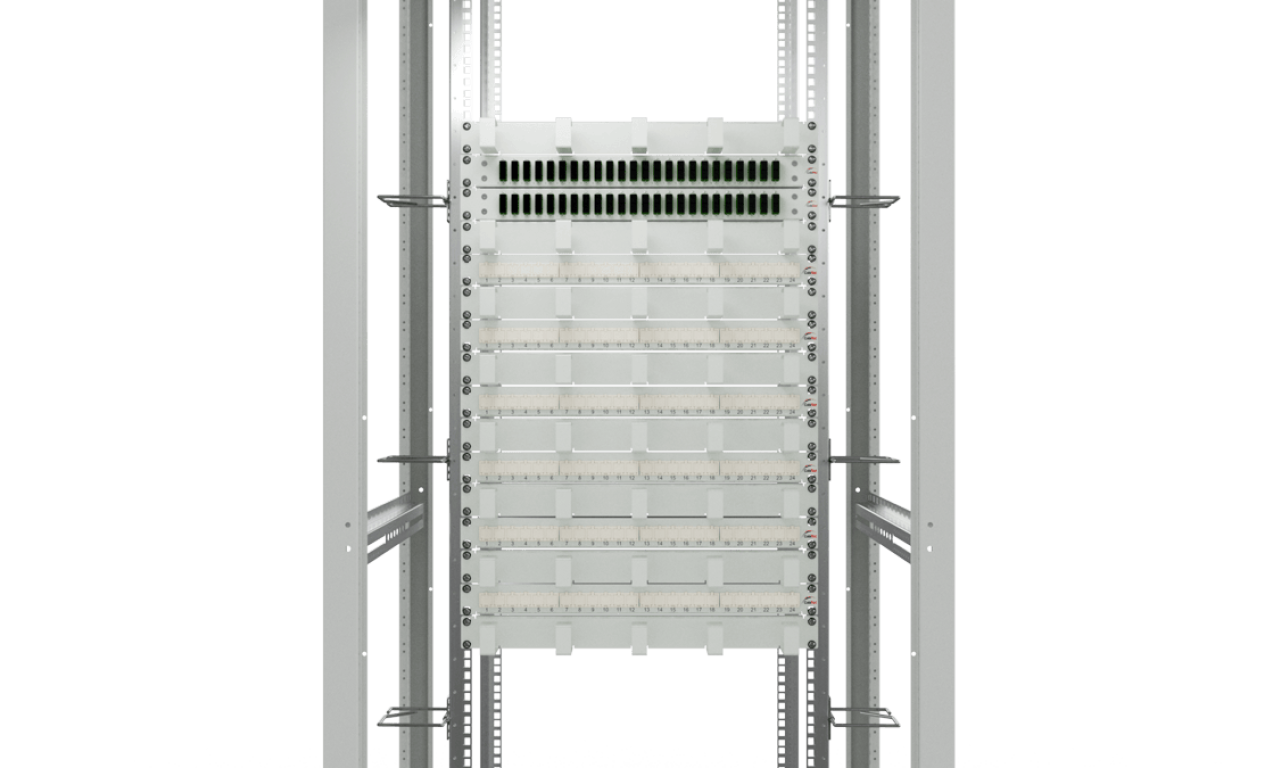

Interior fittings

Generous space for organized and clearly structured cable management, even with large cable volumes, thanks to a wide range of cable management solutions
Efficient ventilation and quiet operation ensured by high-performance, low-noise fan units. Installation of active cooling systems available on request
Easy integration of heavy components with a comprehensive selection of heavy-duty rails
Flexible power distribution for all requirements through a broad range of standard power distribution units (PDUs), with intelligent PDUs available on request

Floor

Flexible design of the floor area through a modular, three-piece floor panel
Easy, dust-protected cable entry via generous openings running along almost the entire cabinet depth
Flexible integration of additional 19” components by using the extra 19” level, for example for power strips or cable management elements
Easy adjustment of the cabinet on uneven floors thanks to the base system with internally adjustable leveling feet

Installation, Allignment and Expansion – no problem

Whether as a single cabinet or a row

Whether you operate just a few IT components or a complete data center, CobiNet network cabinet solutions offer maximum flexibility and user-friendliness for the optimal integration of your infrastructure.

Thanks to its well-thought-out design, the RS18 cabinet system enables quick and easy setup, precise alignment, and fast commissioning — whether used as a single cabinet or as part of a cabinet row.

Your advantages at a glance:

Easy height adjustment – internally adjustable leveling feet allow precise alignment on uneven floors
Time- and cost-saving assembly – all components and side panels can be easily installed by a single person
Optimized handling of large cabinets – starting from a height of 36U, lockable two-piece side panels enable easy installation and improved accessibility
Flexibility and scalability – the RS18 system can be seamlessly expanded to meet growing IT requirements through cabinet baying

Do you need support for your specific requirements?

Does your project need a solution that cannot be realized with our standard housings? No problem! With our customer-specific housing development, we offer you the opportunity to develop exactly the product that meets all your requirements.
